New &amp; Refurbishment

Two-Stage Telescopic Holeless

Single Stage In-Ground (Borehole)

Factory Refurbishment

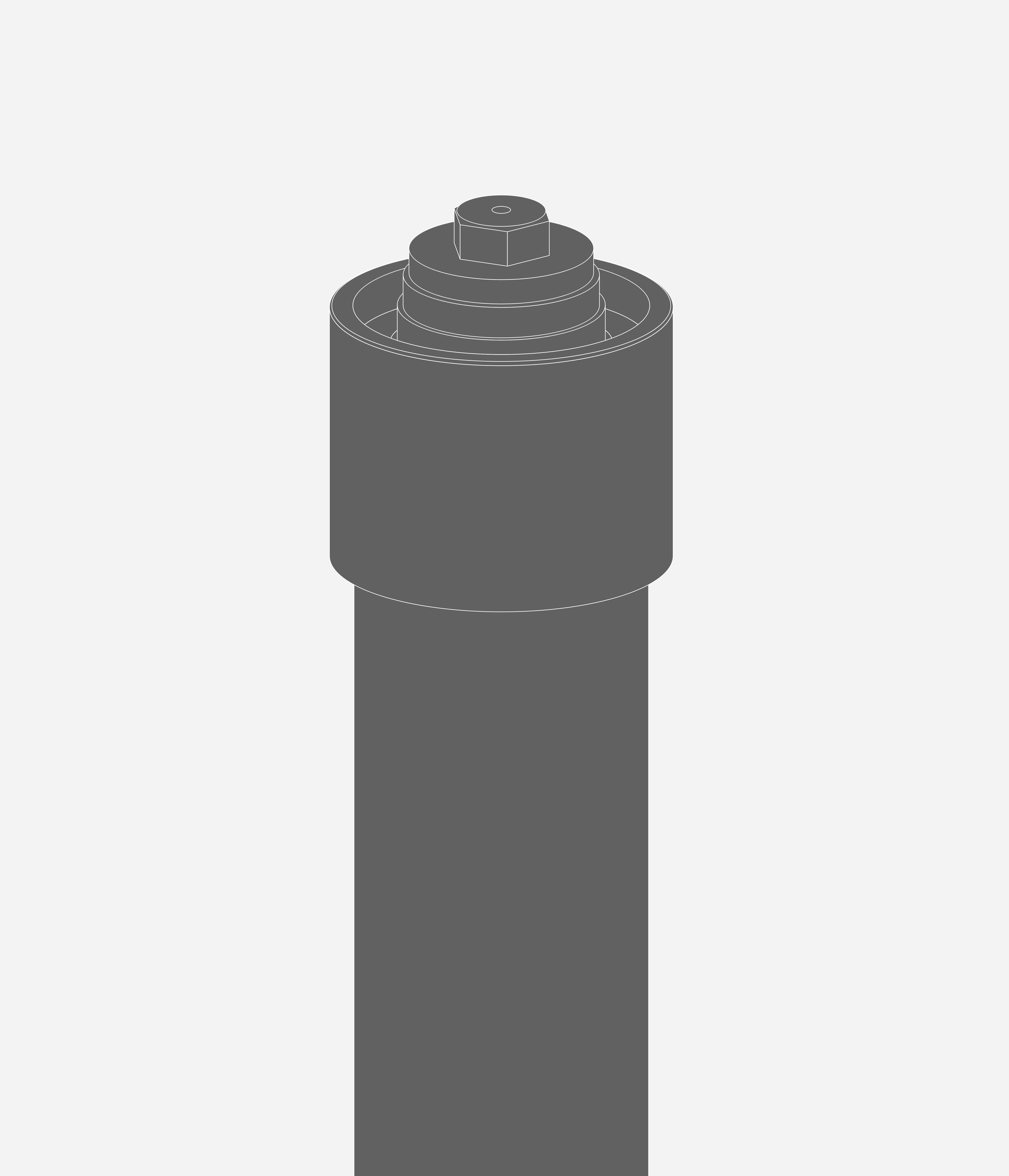

Single Stage Holeless

Jacks

Single Stage Holeless

Jacks

Single stage holeless jacks offer a dependable, drill-free solution for low-rise hydraulic elevator applications. Designed for straightforward installation and seamless integration with standard components, this configuration is a practical choice for both new construction and modernization projects.

Cost-Effective Solution

By eliminating drilling and associated site work, holeless systems help reduce overall project costs.

Efficient Installation

A streamlined installation process helps reduce time on site and simplify projects.

Accessible for Service

Above-ground components allow for easier inspection, maintenance, and ongoing service.

Specifications

Plunger diameter: Up to 6.5”
Cylinder diameter: Up to 8”

Standard Equipment

Round base plate with locating pin
1 1/8”-7 NC threaded plunger cap
Grooved inlet/outlet with a diameter of 2”
Bleeder/recuperator port location 180° from inlet

Optional Items

Rectangular base plates may be parallel or perpendicular to the inlet
Square base plate
Threaded (NPT) male inlet
Custom bleeder port valve location in 10° increments
Additional seal kits

Skip the back-and-forth.

Get your jack quote online in minutes.

If you don’t already have a ToolBOX™ account, click here to fill in your details and get started.

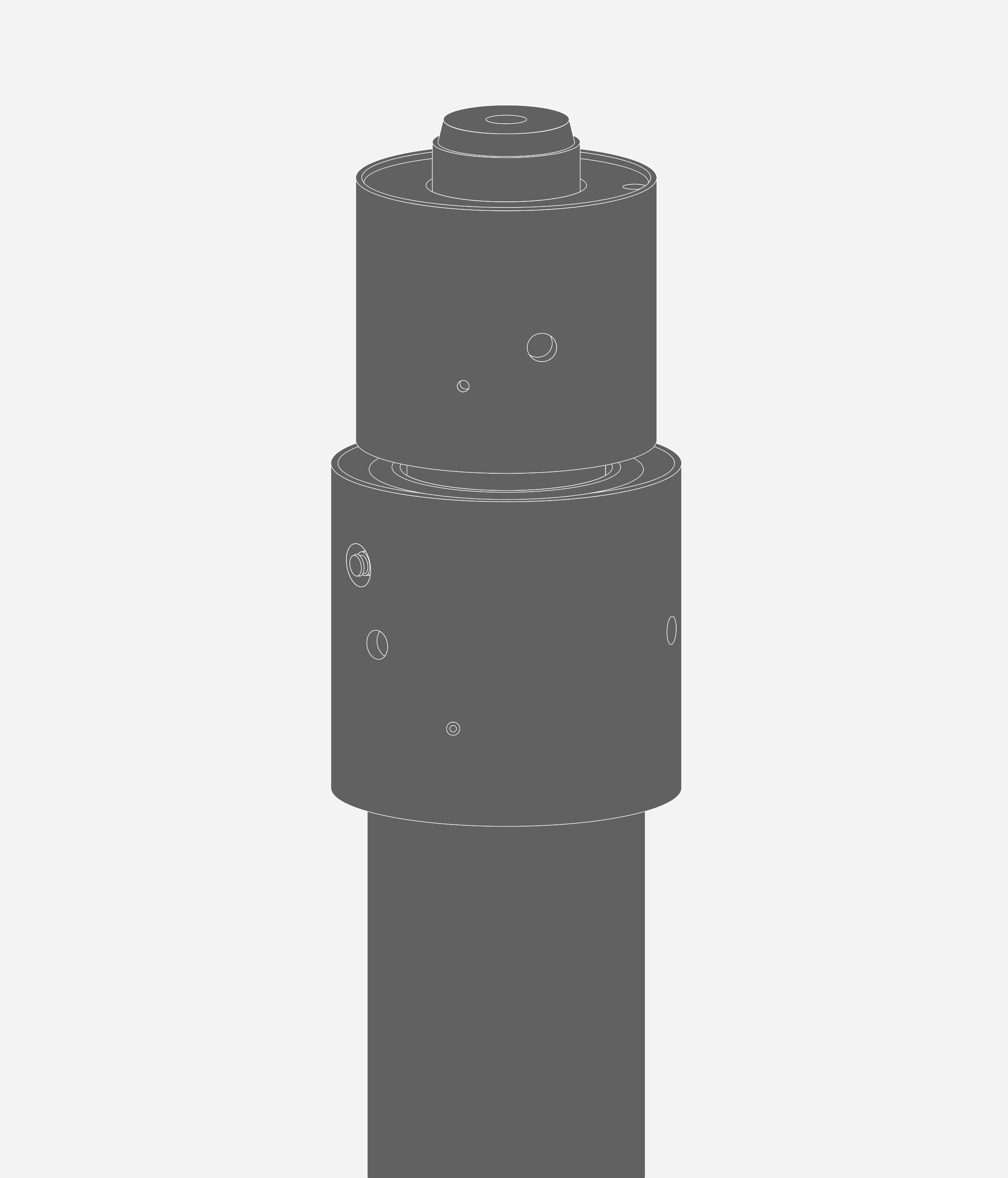

Two-Stage Telescopic Holeless

Jacks

Telescopic jacks are a multi-stage hydraulic solution designed for applications requiring greater travel. By using multiple stages, this configuration achieves extended travel within a single jack assembly while maintaining a similar footprint to a single-stage jack.

Extended Travel in a Compact Design

Provides greater travel within a single jack assembly without significantly increasing overall length.

Self-Contained Multi-Stage Design

All stages are integrated within the jack, minimizing the number of separate components to coordinate and install.

Smooth, Consistent Operation

Multi-stage design provides steady, consistent movement throughout travel.

See Quality in Action

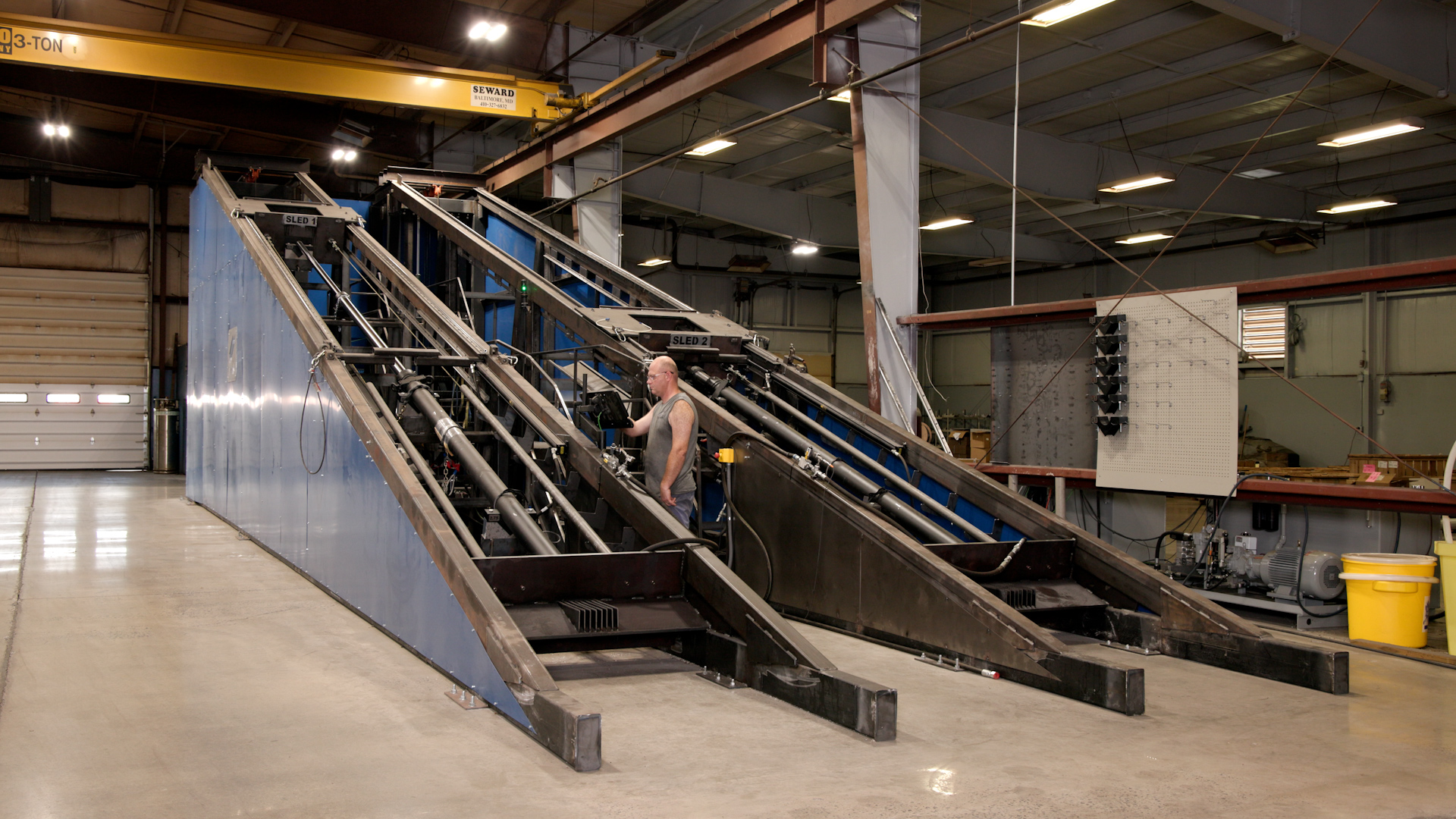

Every two-stage telescopic jack is precision tested before it leaves our facility, verifying full-stroke operation, proper stage sequencing, operating pressure, and more.

But performance is only part of the story. Our jacks are also prefilled and ready for installation, helping crews save time in the field while minimizing startup and bleeding challenges.

From precision testing to easier installation, it's all part of delivering a jack you can install with confidence.

Specifications

2.50”
1st stage plunger: 2.408” diameter
2nd stage plunger: 3.348” diameter
Cylinder: 4.756” diameter
2.75”
1st stage plunger: 2.754” diameter
2nd stage plunger: 3.937” diameter
Cylinder: 5.593” diameter
3.50” (Coming Soon)
1st stage plunger: 3.341” diameter
2nd stage plunger: 4.720” diameter
Cylinder: 6.693” diameter

Standard Equipment

Dual jack/post setup
Bleeder/recuperator port location 130° and 230° from inlet
Round base plate with locating pin
1 1/8”-7 NC threaded plunger cap
Grooved inlet/outlet with a diameter of 2”

Optional Items

Rectangular base plates may be parallel or perpendicular to the inlet
Square base plates
Threaded (NPT) male inlet
Custom bleeder/recuperator port valve location in 10° increments, always 100° apart
Additional seal kits

Skip the back-and-forth.

Get your jack quote online in minutes.

If you don’t already have a ToolBOX™ account, click here to fill in your details and get started.

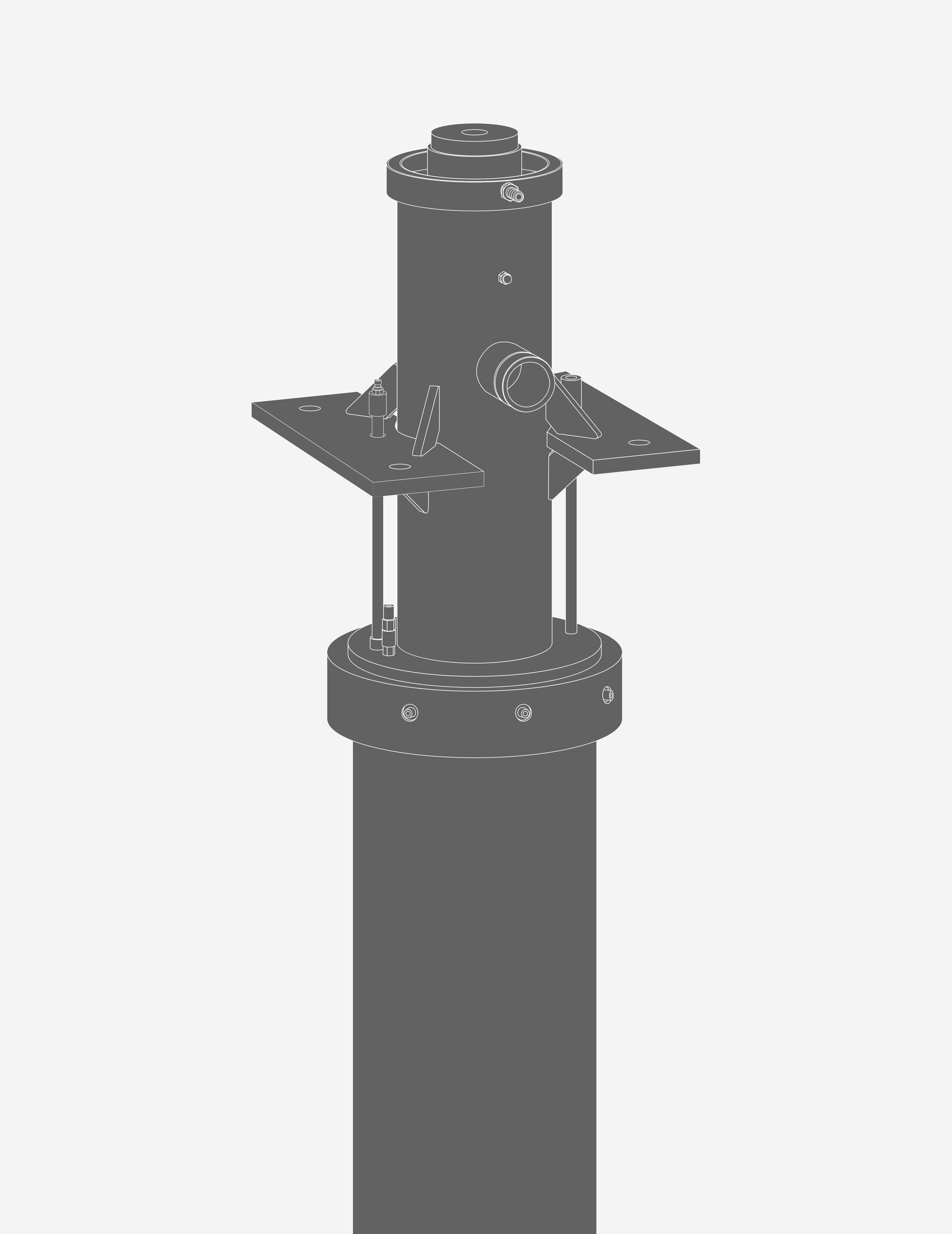

Single Stage In-Ground

Jacks (Borehole)

In-ground (borehole) jacks are a proven hydraulic solution installed below ground. This configuration provides dependable performance with a straightforward mechanical design and is typically used in new construction or in modernization projects where an existing borehole is already in place.

Supports Higher Capacity Applications

Well-suited for higher capacity requirements, including passenger, hospital, and freight applications.

Simple and Direct Design

A direct configuration without posts or roping reduces the number of components within the system.

Well-Suited for New Construction

Ideal for new construction projects where a borehole can be incorporated into the building design.

Specifications

Plunger diameter: Up to 8”
Cylinder diameter: Up to 10”
Joints: Threaded/Non-Welded

Standard Equipment

Plunger
Cylinder
Grooved inlet/outlet with a diameter of 2” and 3”
1 1/8”-7 NC threaded plunger cap
W2S pressurizable PVC Sch40 and single wrap cylinder protection

Optional Items

Cylinder Protection:
Single wrap cylinder protection PVC provided by others
W2S pressurizable PVC Sch80 and single wrap cylinder protection
W3 flexible PVC liner with monitoring tube and single wrap cylinder protection
Threaded (NPT) male inlet with a diameter of 2” and 3”
Overspeed (OSV/PRV) valves
Ball valves
Additional seal kits

Pit Components:
Spring buffers
6” high pit channels
Hardware kit for pit equipment

Skip the back-and-forth.

Get your jack quote online in minutes.

If you don’t already have a ToolBOX™ account, click here to fill in your details and get started.

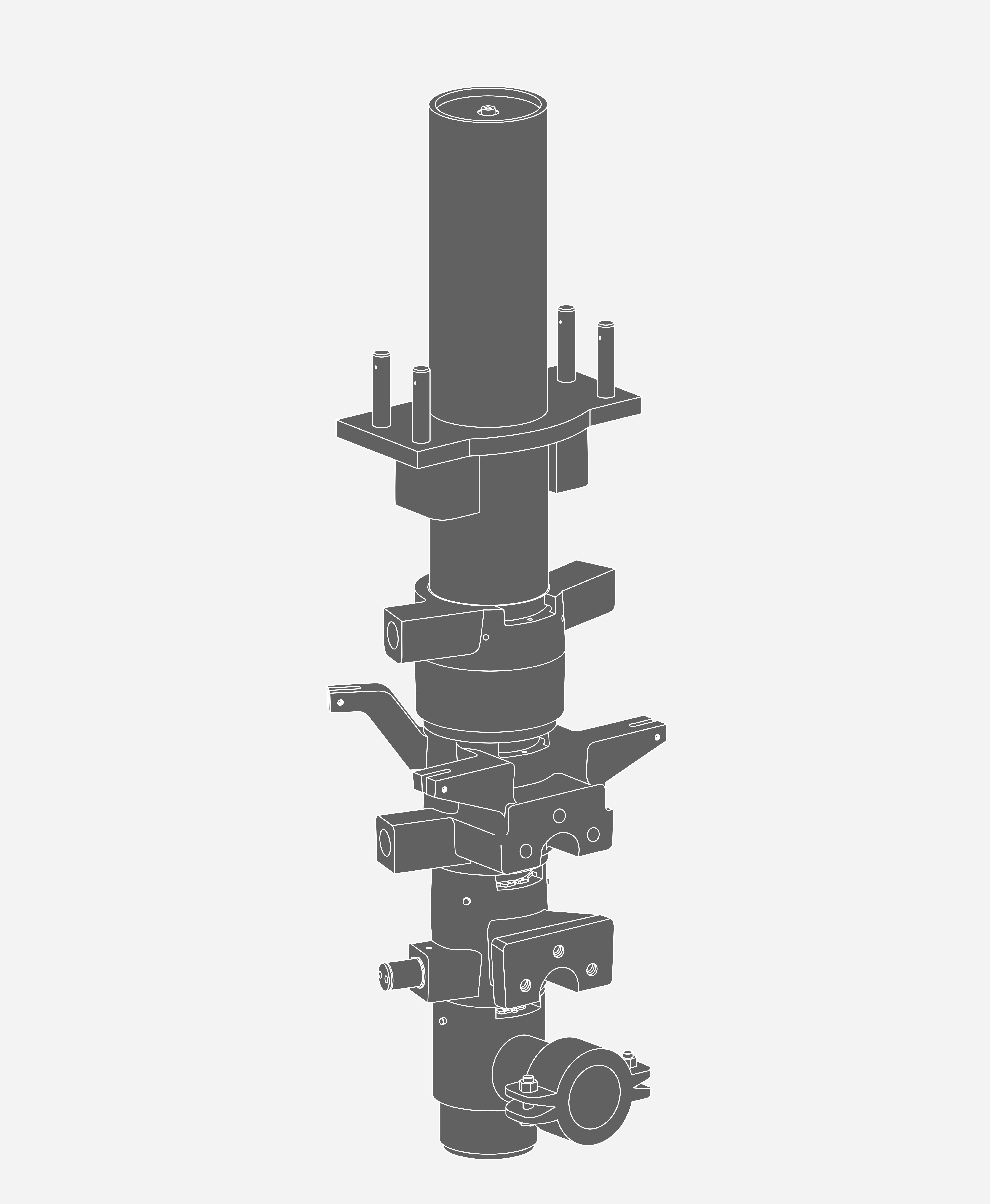

Factory Refurbishment

330A/321A Jacks

AES offers an OEM-backed refurbishment program for Schindler 330A/321A inverted jacks, providing a practical alternative to full replacement. Performed by DLM, the original manufacturer, this program simplifies the process, reduces downtime, and restores each jack to original specifications.

OEM-Backed Refurbishment

Performed by the original manufacturer (DLM) to ensure quality, consistency, and performance.

Simple, All-Inclusive Process

Crate delivery, return shipping, and refurbishment are included, reducing coordination and simplifying the job. All steps are managed through the ToolBOX™, allowing you to quote, order, and track progress in real time.

Fast Turnaround

Our streamlined refurbishment process features a two-week manufacturing lead time, helping reduce elevator downtime and minimize disruption to tenants. Shipping and transit times vary by destination

What’s Included

Complete disassembly and inspection
Replacement of seals and wear components
Reconditioning of major components as needed
Cleaning, repainting, and reassembly
Final testing to OEM specifications
1-year warranty on complete jack assembly (parts only)

D.L. Martin AES Supplier Showcase Tour

D.L. Martin

Exclusive Manufacturing Expertise

AES has an exclusive partnership with DLM, a trusted manufacturer of hydraulic cylinders and elevator jacks with over 40 years of experience. As the manufacturing partner behind the AES jack program, DLM supports the full range of solutions, from new equipment to refurbishment. Additionally, as the original equipment manufacturer of the Schindler 330A/321A jack, DLM brings unmatched expertise to Alliance’s refurbishment program. Their commitment to quality, precision manufacturing, and industry compliance ensures every new and refurbished jack meets the highest performance and safety standards.

Quality & Compliance Standards

ASME A17.1-2013 compliant
ISO 9001:2008 certified
CWB approved to CSA W47.1, Division 3
AWS certified welders
Zero-defect AQL 1.5 inspection program
