ELEVATOR FEATURES

Characteristics

  • Up to 950 lb capacity (750 lb standard)*
  • 40 f.p.m. nominal car speed
  • Up to 6 stops with 50 feet of floor to floor travel*
  • Minimum pit depth of 8 inches required (10" recommended)
  • Minimum overhead clearance of 8'0"required (9'6" recommended)
  • Up to 15 square feet interiors cab sizes available (12 ft standard)*
  • *Consult factory for other custom options available

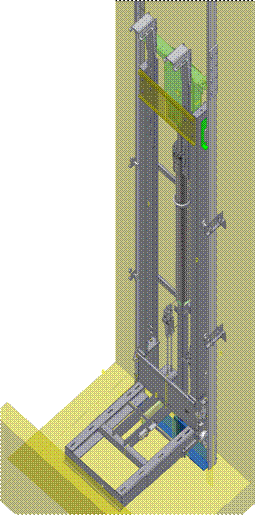

Equipment

  • 1:2 Roped hydraulic drive
  • (2) 3/8" diameter hoist cables
  • Single stage hydraulic piston and cylinder with pressure balanced self adjusting seal
  • Heavy duty cantilevered designed car sling with roller guide shoes
  • 8 lb per foot steel tee guide rail system
  • 220 volt single phase power supply
  • Vibration free submersible pump/motor assembly with 3 or 5 horsepower motor option
  • Two speed control valve with (4) solenoids, start and stop, and constant down speed regulation

Safety Devices

  • Type "A" instantaneous broken rope car safety
  • Pipe rupture valve
  • Upper and lower terminal limit switches
  • Top final limit switch
  • Slack cable switch
  • Emergency car lighting in cab
  • Emergency l stop switch in cab
  • Emergency push button alarm in cab
  • Automatic car re-leveling device
  • Floor selectable battery lowering device
  • Emergency manual lowering valve
  • Emergency telephone in cab
  • Solid panel cab doors with approved safety switch
  • Approved electro mechanical hoistway door interlocks
  • Rubber impact bumper below elevator car
  • UL and/or CSA certified electrical and hydraulic devices
  • Manufactured in accordance with ASME A17.1 safety code

Controls/Push Button Fixtures

  • Automatic pushbutton control
  • Microprocessor based control system with uninterrupted battery back up
  • Light-up push buttons in car and hall
  • Digital floor position indicator in car
  • Automatic in car light with override switch in cab
  • Automatic indicator light time-out feature
  • Automatic "Home Park" feature to designated floor
  • "Car Here" indicators in hall
  • Low oil protection timer circuit

Cab Finishes & Accessories

  • Cambridge series cab available in a wide variety of plastic laminate choices and other options
  • Solid panel accordion cab door available in a wide variety of vinyl laminate choices
  • 36" x 48" x 80" high clear interior cab size with a variety of cab opening configurations
  • Brushed stainless steel handrail on one side wall
  • Brushed stainless steel cab control panel Options
  • St. Michael & Chesapeake Series cabs available in a wide variety of finishes and other options
  • Accordion cab doors in hardwoods, custom stain and lacquer finish aluminum, clear or bronze acrylic panels
  • Recessed telephone cabinet
  • Automatic car door operator
  • Polished stainless steel, brushed brass, or polished brass pushbutton faceplate handrail finishes
